Spektrum SPMSA7100 A7100 Mid Torque High Speed HV Wing Servo

A7100 Mid Torque Mid Speed HV MG Thin Wing Servo

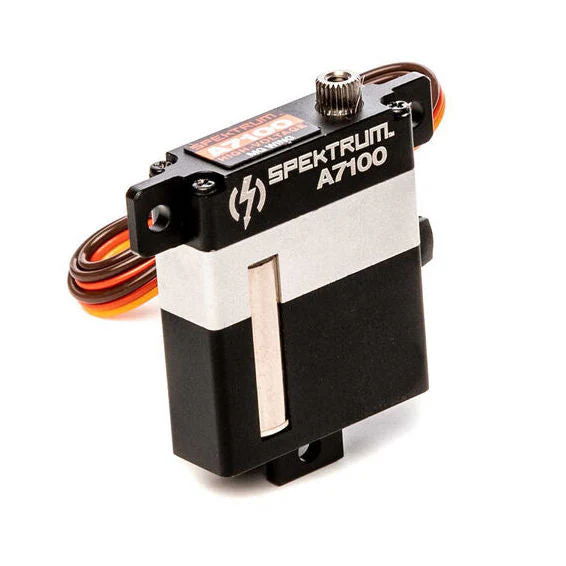

The Spektrum ™ A7100 digital metal gear servo offers phenomenal performance for sailplanes and other thin wing applications. High voltage capable, the A7100 can produce 8.3kg-cm (115 oz-in) of torque at fast 0.078 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a durable, long-lasting coreless motor and is ball bearing supported for smooth operation. It also features a full aluminum case plus low deadband and extraordinary precision. Like all Spektrum servos, the A7100 delivers reliability, consistency and performance that are second to none.

Features

• High Voltage (HV) capable (4.8-8.4v input range)
• Specifically designed for thin wing aircraft models and sailplanes
• Class leading performance (8.3kg-cm and .078 sec/60° @8.4v)
• Aluminum servo case helps keep operating temperatures low
• Low wear and tightly meshed all metal gear train
• Bearing supported drive train helps maximize smooth operation
• Over Current and Temperature protection
• Operating Frequency: 200hz to 333hz

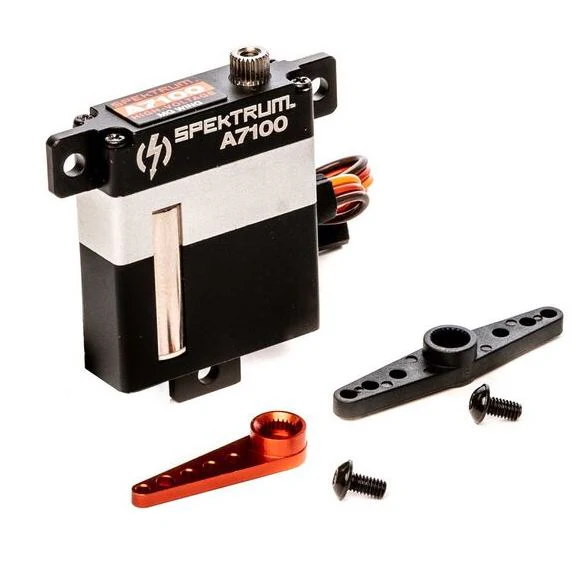

Contents

• (1) A7100 Wing Servo
• (1) Double-sided Plastic Servo Arm
• (1) One Inch Red Anodized Aluminum Servo Arm
